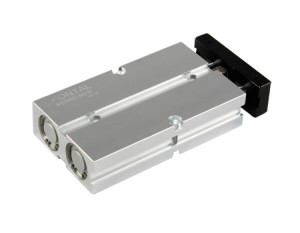

Dual Rod Cylinder FCN Series

Dual Rod Cylinder FCN Series
.

Bore size (mm) 10 16 20 25 32
Action Double action
Working media      air
Operation pressure 0.1～1.0MPa（14～145Psi）
Withstanding pressure      1.5MPa（215Psi）
Ambient temperature 0C      -20～70
Speed range      30～500
Stroke      -10～0
Tolerance range      +1.0
0
Buffer type buffer
Non-rotating accuracy ±0.4° ±0.3°
Port size M5×0.8 PT1/8
