PC/RC 06, 08, 15 Series

4/5 Port Solenoid Valve PC/RC06, 08, 15 Series

4 Port Pilot Operated Solenoid Valve PC06 Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
PCS2406 Sub-base mounting 4 Single 2 Rc1/4 10 0.2~1
(2~10)
PCD2406 Double
PCD3406 3•Closed center 9 0.2~0.8
(2~8)
PCE3406 3•Exhaust center

● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector

Icon

PC06 Catalog

1 file(s)   706.74 KB
Icon

PC06 2D CAD

1 file(s)   942.93 KB
Icon

PC06 3D CAD

1 file(s)   5.65 MB

Individual Wiring Type Manifold MF☐-PC06
.

Type of Manifold MFS☐-PC06 MFB☐-PC06
common SUP, common EXH, Ports 2 & 4 on side common SUP, common EXH, Ports 2 & 4 on bottom
Port size Port 1 Rc¼ (both sides) Rc¼ (both sides)
Port 3, 5 Rc¼ (both sides) Rc¼ (both sides)
Port 2, 4 Rc¼ (Side) Rc¼ (Bottom)
Number of stations 2~10
 Mountable Solenoid Valve PCS2406-NB-※
PCD2406-NB-※
PCD3406-NB-※
PCE3406-NB-※
PCO3406-NB-※
Blank plate PC06-BP



Icon

MF☐-PC06 Catalog

1 file(s)   464.55 KB
Icon

MF☐-PC06 2D CAD

1 file(s)   3.63 MB
Icon

MF☐-PC06 3D CAD

1 file(s)   4.57 MB

5 Port Pilot Operated Solenoid Valve PC08 Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
PCS2408 Sub-base mounting 5 Single 2 Rc3/8 30 0.2~0.8 (2~8)
PCD2408 Double
PCD3408 3•Closed center 25
PCE3408 3•Exhaust center
PCO3408 3•Pressure center 19

● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector

Icon

PC08 Catalog

1 file(s)   574.34 KB
Icon

PC08 2D CAD

1 file(s)   2.44 MB
Icon

PC08 3D CAD

1 file(s)   5.36 MB

Individual Wiring Type Manifold MF☐-PC08
.

Type of Manifold MF☐-PC08 MFS☐-PC08
common SUP, common EXH, Ports 2 & 4 on both sides common SUP, common EXH, Ports 2 & 4 on side
Port size Port 1 Rc½ (both sides) Rc½ (both sides)
Port 3, 5 Rc½ (both sides) Rc½ (both sides)
Port 2, 4 Rc⅜ (both sides) Rc⅜ (Side)
 Number of stations 2~10
 Mountable Solenoid Valve PCS2408-NB-※
PCD2408-NB-※
PCD3408-NB-※
PCE3408-NB-※
PCO3408-NB-※
Blank plate PC08-BP
Icon

MF☐-PC08 Catalog

1 file(s)   486.21 KB
Icon

MF☐-PC08 2D CAD

1 file(s)   3.68 MB
Icon

MF☐-PC08 3D CAD

1 file(s)   4.62 MB



5 Port Pilot Operated Solenoid Valve PC15 Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
PCS2415 Sub-base mounting 5 Single 2 Rc1/2 70 0.2~0.8
(2~8)
PCD2415 Double
PCD3415 3•Closed center 60
PCE3415 3•Exhaust center
PCO3415 3•Pressure center 45

● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector

Icon

PC15 Catalog

1 file(s)   552.51 KB
Icon

PC15 2D CAD

1 file(s)   2.45 MB
Icon

PC15 3D CAD

1 file(s)   5.99 MB

Individual Wiring Type Manifold MF☐-PC15
.

Type of Manifold MF☐-PC15
common SUP, common EXH, Ports 2 & 4 on both sides
Port size Port 1 Rc¾ (both side)
Port 3, 5 Rc¾ (both side)
Port2, 4 Rc½ (both side)
  Number of stations 2~10
 Mountable Solenoid Valve PCS2415-NB-※
PCD2415-NB-※
PCD3415-NB-※
PCE3415-NB-※
PCO3415-NB-※
Blank plate PC15-BP
Icon

MF☐-PC15 Catalog

1 file(s)   468.85 KB
Icon

MF☐-PC15 2D CAD

1 file(s)   462.94 KB
Icon

MF☐-PC15 3D CAD

1 file(s)   2.34 MB



5 Port Pilot Operated Solenoid Valve RC06 Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
RCS2406 In-line mounting 5 Single 2 Rc1/4 12 0.2~1
(2~10)
RCD2406 Double
RCD3406 3•Closed center 11 0.2~0.8
(2~8)
RCE3406 3•Exhaust center

● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector

Icon

RC06 Catalog

1 file(s)   594.22 KB
Icon

RC06 2D CAD

1 file(s)   2.61 MB
Icon

RC06 3D CAD

1 file(s)   6.08 MB

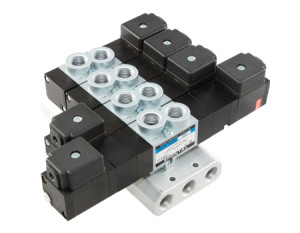

Individual Wiring Type Manifold MFU☐-RC06
.

Type of Manifold MFU☐-RC06
common SUP, common EXH, Ports 2 & 4 on valve body
Port size Port 1 Rc¼ (both side)
Port 3, 5 Rc¼ (both side)
Port2, 4 Rc¼ (Valve body)
 Number of stations 2~10
 Mountable Solenoid Valve RCS2406-※-※-NF
RCD2406-※-※-NF
RCD3406-※-※-NF
RCE3406-※-※-NF
RCO3406-※-※-NF
Blank plate RC06-BP
Icon

MFU☐-RC06 Catalog

1 file(s)   380.87 KB
Icon

MFU☐-RC06 2D CAD

1 file(s)   1.49 MB
Icon

MFU☐-RC06 3D CAD

1 file(s)   1.99 MB



5 Port Pilot Operated Solenoid Valve RC08 Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
RCS2408 In-line mounting 5 Single 2 Rc3/8 30 0.2~0.8
(2~8)
RCD2408 Double
RCD3408 3•Closed center 25
RCE3408 3•Exhaust center
RCO3408 3•Pressure center 19

● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector

Icon

RC08 Catalog

1 file(s)   638.04 KB
Icon

RC08 2D CAD

1 file(s)   2.54 MB
Icon

RC08 3D CAD

1 file(s)   6.04 MB

Individual Wiring Type Manifold MFU☐-RC08
.

Type of Manifold MFU☐-RC08
common SUP, common EXH, Ports 2 & 4 on valve body
Port size Port 1 Rc⅜ (both side)
Port 3, 5 Rc⅜ (both side)
Port 2, 4 Rc⅜ (Valve body)
  Number of stations 2~10
 Mountable Solenoid Valve RCS2408-※-※-MF
RCD2408-※-※-MF
RCD3408-※-※-MF
RCE3408-※-※-MF
RCO3408-※-※-MF
Blank plate RC08-BP
Icon

MFU☐-RC08 Catalog

1 file(s)   439.72 KB
Icon

MFU☐-RC08 2D CAD

1 file(s)   1.93 MB
Icon

MFU☐-RC08 3D CAD

1 file(s)   2.36 MB
